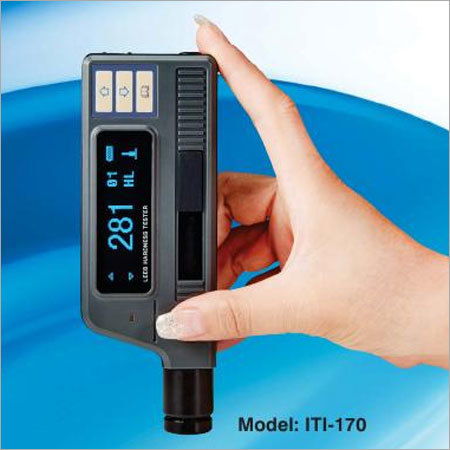

Hardness Tester
- Minimum Order Quantity
- 1
- Unit of Measure
- Piece/Pieces
Optional Accessories:
Special Application Impact Devices
- Impact Device: D Universal standard device: Use for the majority of hardness testing assignments
- Impact Device :DL Tip 4mm diameter x 1.96” length Measurements in extremely confined spaces
- Impact Device: G Enlarged test tip: For use on solid heavy components such as; rough castings and forgings. Brinell only.
- Impact Device: DC Extremely short impact device. Used for very confined spaces such as holes, cylinders, internal measurements
- Impact Device: D+15 Slim front section with coil set back. Hardness measurements in grooves, recessed surface
- Impact Device: C Reduced impact energy. For testing case hardened material
Specification
| Impact devices -> | D/ DC/ DL | D+ 15 | C | G |
| Impact energy | 11Nmm | 11Nmm | 3Nmm | 90Nmm |
| Mass of the impact body | 5.5g | 7.8g | 3.0g | 20g |
| DL: 7.2g |
|
|
|
|
| Test tip |
|
|
|
|
| * Hardness | 1600HV | 1600HV | 1600HV | 1600HV |
| * Diameter | 3mm | 3mm | 3mm | 5mm |
| * Material |
| Tungsten | Tungsten |
|
| * |
| Carbibe | Carbibe |
|
| * |
| Carbibe | Carbibe |
|
| Impact device |
|
|
|
|
| * Diameter | 20mm | 20mm | 20mm | 30mm |
| * Length | 147/86mm | 162mm | 141mm | 254mm |
| * Weight | 75/50g | 80g | 75g | 250g |
| Max. hardness of sample | 940HV | 940HV | 1000HV | 650HB |
| Preparation of surface |
|
|
|
|
| * Max. roughness depth Rt | 10 µm | 10 µm | 2.5 µm | 30 µm |
| * Average roughness Ra | 2 µm | 2 µm | 0.4 µm | 6.3 µm |
| Min. weight of sample | 5kg | 5kg | 1.5kg | 15kg |
| Min. thickness of sample |
|
|
|
|
| * STEEL | 25mm | 25mm | 25mm | 25mm |
| Indentation of test tip |
|
|
|
|
| With 300 HV |
|
|
|
|
| * Diameter | 0.54mm | 0.54mm | 0.38mm | 1.03mm |
| * Depth | 24 µm | 24 µm | 12 µm | 53 µm |
| With 600 HV |
|
|
|
|
| * Diameter | 0.45mm | 0.45mm | 0.32mm | 0.90mm |
| * Depth | 17 µm | 17 µm | 8 µm | 41 µm |
| with 800 HV |
|
|
|
|
| * Diameter | 0.35mm | 0.35mm | 0.30mm |
|
| * Depth | 10 µm | 10 µm | 7 µm |
|
Product Features:
- Equipped with OLED bright LCD display, display clearer.
- USB interface, connect the computer and charge with 360 degrees automatically identify the commonly used impact direction function.
- It can store 600 average values.
- It can be set in advance hardness value on the Upper & lower limit. There are tips when beyond the range of display to facilitate the user batch measurement.
- Equipped with voltage display and under voltage prompts, there are under voltage automatic shutdown function.
- With the indication software calibration function.
- Use replaceable large capacity lithium battery.
- Use key button film, dust proven.
- According to the user's request, can be equipped with computer software, more powerful, to meet the quality assurance activities and management of higher requirements.
- The optional advanced model to support Bluetooth print fun and wireless data transmission.
TECHNICAL PARAMETERS:
- Test range : (170-960) HLD,(20-68) HRC, (19-651) HB, (80-967) HV, (30-100) HS, (59-85) HRA, (13-100)HRB;
- Testing direction: Support 360-degree measurement; high with version to support automatic measurement of direction; Hardness, Leeb(HL), Brinell (HB), Rockwell C (HRC), Rockwell A (HRA), Rockwell B(HRB), Vickers(HV), Shore hardness(HS)
- Applicable materials:Steel and cast steel, metallurgical tool steel, forged steel, gray cast iron, ductile iron, cast aluminum alloy, Copper-zinc alloy (brass), copper-tin alloy (bronze).
- Impact devices: D / DC / D+15 / G / C / DL
- The minimum radius of curvature of the workpiece: Rmin=50mm(Rmin=10mm);
- The minimum weight of the workpiece: 2kg (with Stable support) (0.1kg to be coupled);
- The minimum thickness of the workpiece: 3mm
- The minimum thickness of the hardened layer of the workpiece: 0.8mm
- Operating temperature : 0~40°C
- Duration time : 40 hours of continuous work
- Accuracy : +/- 6 HLD
- Output : 1.1 USB
- Dimensions : 152x55x20mm (LXWXT)
- Weight : 160grm
Standard configuration：
- Hardness tester Host
- Hardness test block
- Nylon brush;
- USB charger; 1
- Communication lines
- and data software;
- Operation Manual,
- Calibration Certificate
Optional configuration：
Different Probes :
- D / DC / D+15 / G / C / DL;
- All kinds of special support ring;
- Bluetooth printer;
- Bluetooth module
